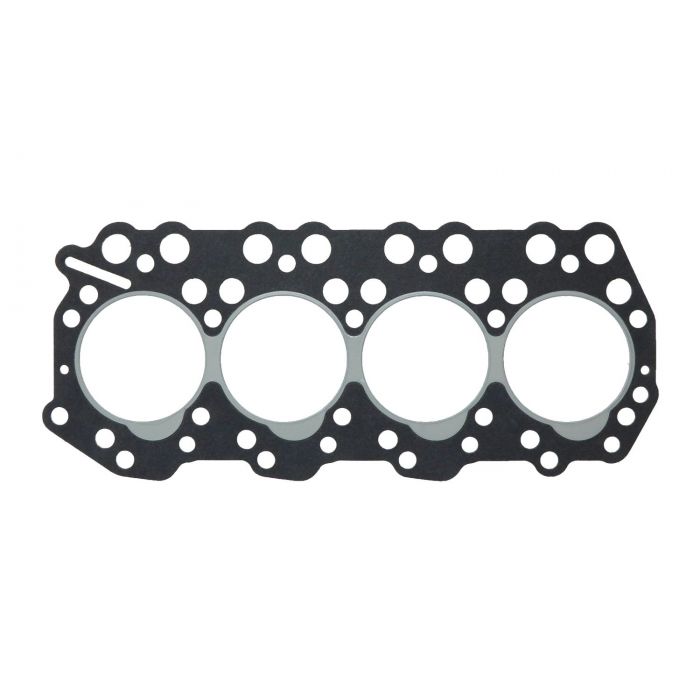

Koppakking Mitsubishi S4Q2

Klepspeling: In- en uitlaat 0.25mm / 0.0098” (KOUD)

Aanhaalspanning kopbouten:
113-123Nm / 11.5-12.5 kgm / 83.8-90.7 lbf.ft

AMI:
GS 0019 M 32S, GS 0021 M 32S,

Atlas:
AB605R,
AM48R,

Broadcrown:
BCM 16-50SP E2, BCM 21-60, BCM 22-50 E2, BCM 22-60SP, BCM 22-60SP iT4,

Caterpillar:
304C CR, 305C CR, 305.5D, 904B, 904H,
DP15, DP18,
MF24D,

Doosan:
G20, G25WMI,
L20,

Geko:
DH/S20, DH/S20 MF,
DHR20,

Giese:
HB 15-30,

Ingersoll Rand:
G20, G22, G25,
S20,

Iseki:
TAC45,

Jungheinrich:
DFG316, DFG320,

LG Tractor:
LT450D,
N41, N47,

Mastervolt:
Whisper 16000 Ultra, Whisper 20000 Ultra,

Mitsubishi:
DPX-11503,
FD10, FD14, FD15, FD18,
GX50, GX511, GX5000,
MC405G, MC500, MC510,
MKM45,
MT508,
VG60,
VY40, VY48, VY50, VY60,

Mitsubishi Engine:
S4Q, S4Q2,

Montana:
4320, 4320C, 4340, 4340C, 4540, 4920, 4920C, 4940C,

New Holland / Kobelco:
EC45,

Nilfisk Alto:
7760,

Nissan:
LX-Serie 1 5t, LX-Serie 1 8t,
FL01,

O&K:
H1.48,

Optimess:
Tiger 16/32 PPN,

Schaeff / Terex:
HR18, HR20,
TC48, TC51, TC60, TC65,

SDMO:
R22C2,
T17C2M, T17KM, T20U, T20UM, T22C3, T22K,
TM20, TM20UCM,

Shindaiwa:
DG50MM,

Technogen:
MI23 / 4SX, MI23T / 4SX,

Teksan:
TJ23MS, TJ24MS,

Whisper Power:
SQ16 1500rpm 230V/50Hz,
